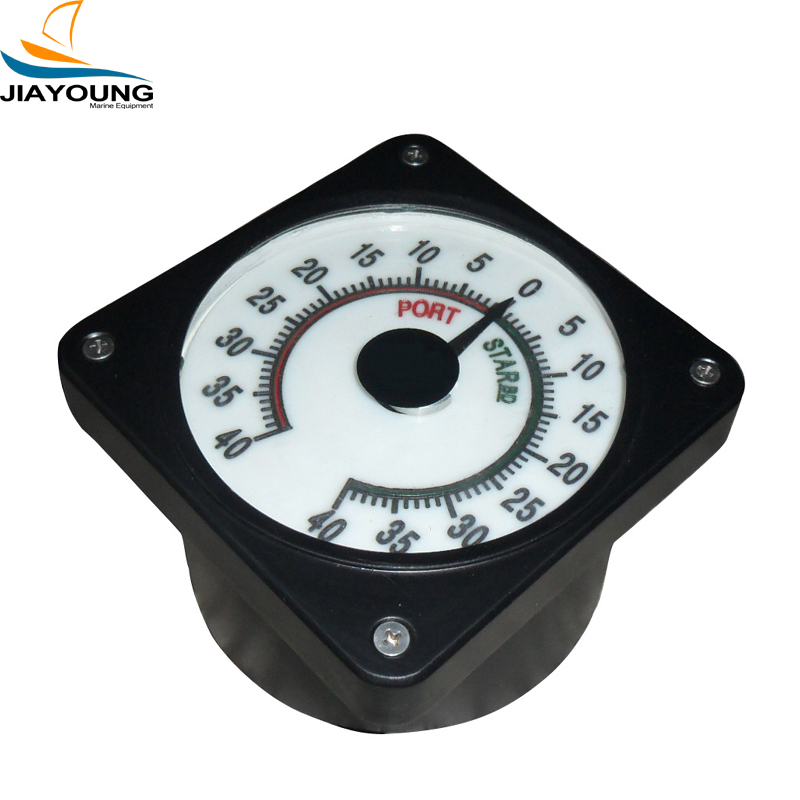

Rudder-Angle-Indication-OTY
Short Description:
No. Name Type Work Voltage(V) Visual Diameter Dimmer Form Protective Form Weight 1 AC Rudder Angle Transmitter OFT-1 220 — — IP56 4.0 OFT-2 110 2 Aquare embedded Type Rudder Angle Receiver OQF1B-1 220 Φ110 Outer IP22 1.2 OQF1B-2 110 3 OQF1E-1 220 Φ110 Non IP22 1.2 OQF1E-2 110 4 OQF2D-1 220 Φ130 Outer IP22 1.7 OQF2D-2 110 5 OQF2E-1 220 Φ130 Non IP22 1.7 ...
Product Detail
Product Tags
|
No. |
Name |
Type |
Work Voltage(V) |
Visual Diameter |
Dimmer Form |
Protective Form |
Weight |
|
1 |
AC Rudder Angle Transmitter |
OFT-1 |
220 |
— |
— |
IP56 |
4.0 |
|
OFT-2 |
110 |
||||||
|
2 |
Aquare embedded Type Rudder Angle Receiver |
OQF1B-1 |
220 |
Φ110 |
Outer |
IP22 |
1.2 |
|
OQF1B-2 |
110 |
||||||
|
3 |
OQF1E-1 |
220 |
Φ110 |
Non |
IP22 |
1.2 |
|
|
OQF1E-2 |
110 |
||||||
|
4 |
OQF2D-1 |
220 |
Φ130 |
Outer |
IP22 |
1.7 |
|
|
OQF2D-2 |
110 |
||||||
|
5 |
OQF2E-1 |
220 |
Φ130 |
Non |
IP22 |
1.7 |
|
|
OQF2E-2 |
110 |
||||||
|
6 |
Round aquare bulkhead mounting Type Rudder Angle Receiver |
OQY3B-1 |
220 |
Φ160 |
Outer |
IP22 |
3.5 |
|
OQY3B-2 |
110 |
||||||
|
7 |
OQY4B-1 |
220 |
Φ200 |
Outer |
IP22 |
4.2 |
|
|
OQY4B-2 |
110 |
||||||
|
8 |
OQY4E-1 |
220 |
Φ200 |
non |
IP22 |
4.0 |
|
|
OQY4E-2 |
110 |
||||||
|
9 |
Round aquare bulkhead mounting Type Rudder Angle Receiver |
OTN3A-1 |
220 |
Φ160 |
Inner |
IP56 |
3.7 |
|
OTN3A-2 |
110 |
||||||
|
10 |
OTN3E-1 |
220 |
Φ160 |
non |
3.5 |
||
|
OTN3E-2 |
220 |
||||||
|
11 |
Round aquare bulkhead mounting Type Rudder Angle Receiver |
OTN4A-1 |
220 |
Φ200 |
Inner |
IP56 |
4.5 |
|
OTN4A-2 |
110 |
||||||
|
12 |
OTN4B-1 |
220 |
Φ200 |
Outer |
4.3 |
||
|
OTN4B-2 |
110 |
||||||
|
13 |
OTN4E-1 |
220 |
Φ200 |
Non |
4.3 |
||
|
OTN4E-2 |
110 |
||||||
|
14 |
Round Bulkhead mounting type rudder angle receiver |
OTY4A-1 |
220 |
Φ200 |
Inner |
IP56 |
5.0 |
|
OTY4B-2 |
110 |
||||||
|
15 |
OTY4B-1 |
220 |
Φ200 |
Outer |
5.0 |
||
|
OTY4B-2 |
110 |
||||||
|
16 |
OTY4E-1 |
220 |
Φ200 |
Non |
4.7 |
||
|
OTY4E-2 |
110 |
||||||
|
17 |
Two face Ruuder Angle Receiver |
ODL5A-1 |
220 |
Φ250 |
Inner |
IP20 |
5.0 |
|
ODL5A-2 |
110 |
||||||
|
18 |
Three Face rudder angle receiver placed centrally one the bridge ceiling |
ODS6A-1 |
220 |
Φ350 |
Inner |
IP20 |
7.0 |
|
ODS6A-2 |
110 |
||||||
|
19 |
ODS7A-1 |
220 |
Φ450 |
Inner |
10 |
||
|
ODS7A-2 |
110 |
