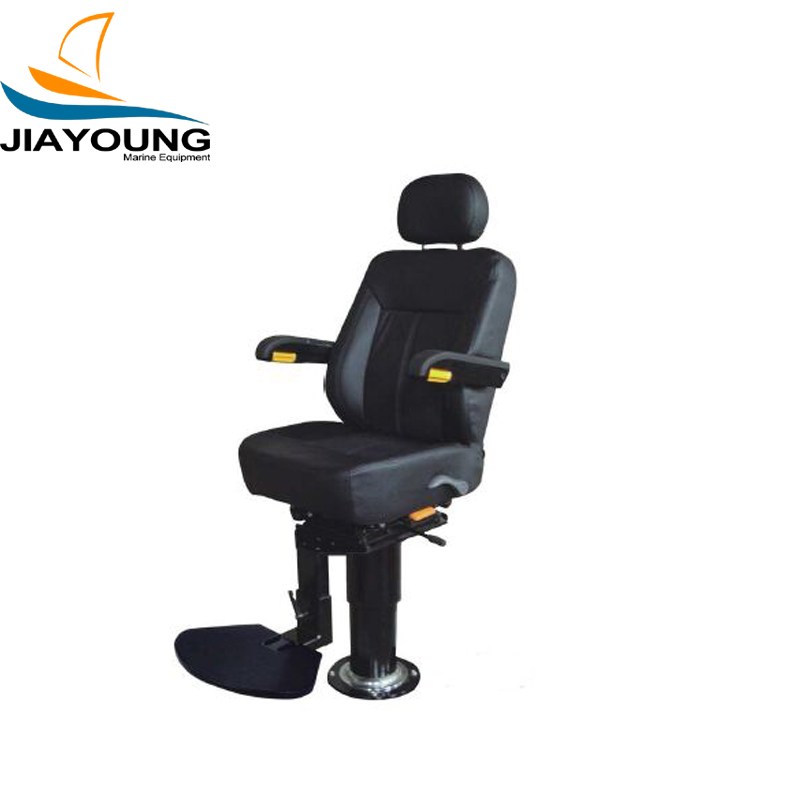

Marine Pilot Chair With Round Steel Column

Function:
1.Ergonomic design;
2.Adjustable backrest and headrest;
3.Seat height may be angle adjusted;
4.Seats can be moved back and forth;
5.Folding / angle-adjustable comfortable seat
armrest;
6.Seat can rotated 360 degrees, multi-point
positioning;
7.Foot pedal height adjustable / folding;
8.Column can be vertically lifting;

Material：
1.lifting column with steel、stainless steel synthesis;
2.The seat lifting and tilting, move back and forth, back angle
adjusting are used in steel structure;
3. The seat back and the seat cushion adopts the steel inner core
and PU cold foam forming disposable sponge synthesis,
outsourcing leather or cloth;
4. Pedal steel plate inner core and environmentally friendly
rubber synthetic;
5. Pneumatic lifting core components pneumatic bar the use of
German imports of Stabilus;

Function data：
1.Upper part of the seat can be moved back and forth of
120mm,height adjustment 50mm, seat inclination angle range of
±12°;
2. Seat backrest with adjustable angle of 85° -150° , the
headrest adjusted up and down 50mm, handrest multi-point
positioning control;
3. The seat of pneumatic lifting regulating range 0-150mm；
4.The seat can rotate 360° and locked ,4-point positioning
control;
5. Seat pedal can rotate 90° and regression, upper and lower
position adjusting range of 0-50mm;
6.Seat can bear more than 150FT.LB torsion, reached AD grade
standard;
