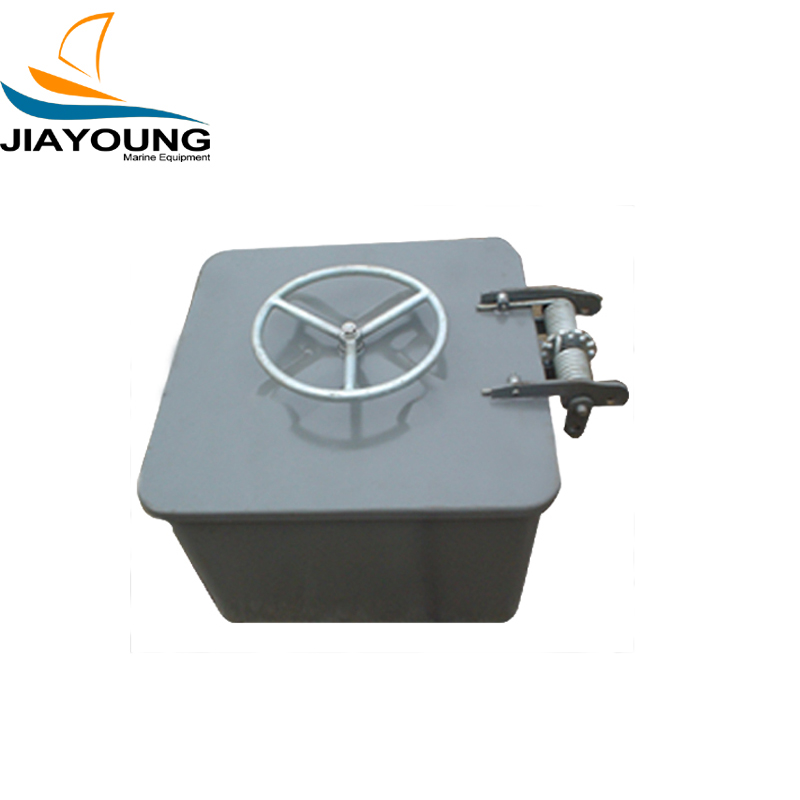

Marine Aluminlum Watertight Hatch Cover

Short Description:

Nominal size L*B Clear size of opening L1*B1*R Cover dimension L2*B2 Cover plate thickness t Coaming Wing type nut cleat Weight Kg to thickness H Height Diameter Quantity 450*630 420*600*100 508*688 4 4.6 100 150 200 250 450 600 M16 4 28.7 512*692 6 6.8 35.4 516*696 8 8.11 42.0 530*530 500*500*100 588*588 4 4.6 28.5 592*592 6 6.8 35.1 596*596 8 8.11 41.7 630*630 600*600*100 688*688 4 4.6 M20 33.5 692*692 6 6.8 42.4 696*696 8 8.11 51.2 630*830 600*8...

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 1000 Piece/Pieces per Month

Port: China Port

Payment Terms: L/C,TT,Western Union, Paypal

Send email to us Download as PDF

Product Detail

Product Tags

Nominal size L*B	Clear size of opening L1B1R	Cover dimension L2*B2	Cover plate thickness t	Coaming		Wing type nut cleat		Weight Kg
Nominal size L*B	Clear size of opening L1B1R	Cover dimension L2*B2	Cover plate thickness t	to thickness	H Height	Diameter	Quantity	Weight Kg
450*630	420600100	508*688	4	4.6	100 150 200 250 450 600	M16	4	28.7
		512*692	6	6.8				35.4
		516*696	8	8.11				42.0
530*530	500500100	588*588	4	4.6				28.5
		592*592	6	6.8				35.1
		596*596	8	8.11				41.7
630*630	600600100	688*688	4	4.6		M20		33.5
		692*692	6	6.8				42.4
		696*696	8	8.11				51.2
630*830	600800100	688*888	4	4.6				39.7
		692*892	6	6.8				51.2
		696*896	8	8.11				62.3
830*830	800800100	888*888	4	4.6			6	51.2
		892*892	6	6.8				65.3
		896*896	8	8.11				79.4
830*1230	8001200100	888*1288	4	4.6			8	71.4
830*1230	8001200100	892*1292	6	6.8			8	91.5
