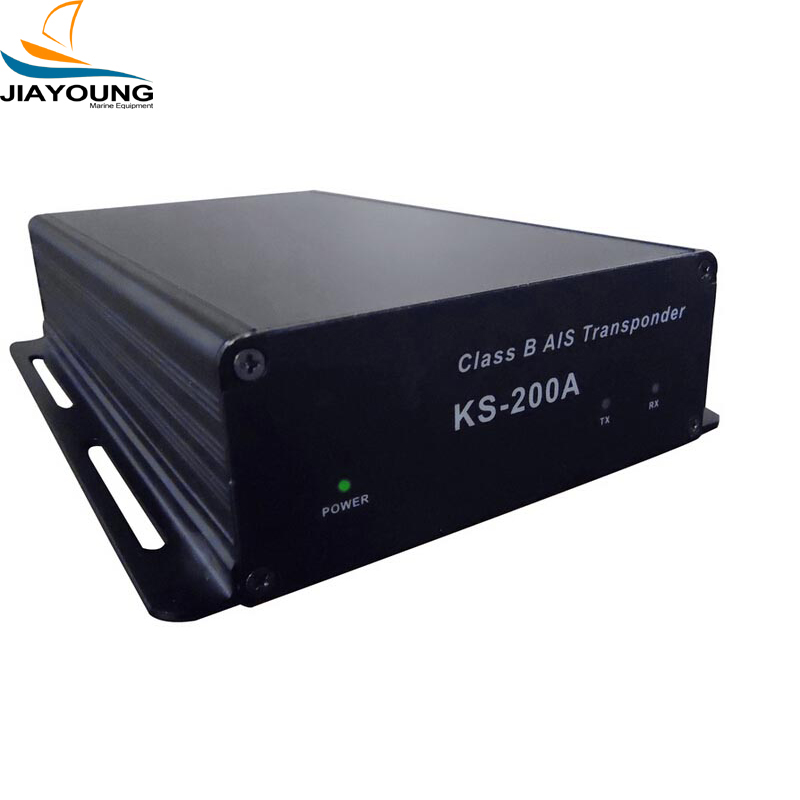

Marine AIS Class B Transponder System
Short Description:
Displays: Dynamic Information position of the ship (derived from GPS) time, when the position was measured in UTC course over ground (COG) speed over ground (SOG) heading (HOG) ship status rotational speed/turn rate Static Information MMSI number call sign and name of the vessel length and width of the vessel IMO-number of the vessel, if existent type of vehicle position of the GPS sensor onboard Journey-related Information draught of the vessel type of cargo port of destination and estimated...
Product Detail
Product Tags
Displays:
Dynamic Information
position of the ship (derived from GPS)
time, when the position was measured in UTC
course over ground (COG)
speed over ground (SOG)
heading (HOG)
ship status
rotational speed/turn rate
Static Information
MMSI number
call sign and name of the vessel
length and width of the vessel
IMO-number of the vessel, if existent
type of vehicle
position of the GPS sensor onboard
Journey-related Information
draught of the vessel
type of cargo
port of destination and estimated time of arrival (ETA)
route plan, optional compulsory way, depending on the vessels movement
| VHF TRANSCEIVER | |
| 1. Frequency | 156.025 to 162.025 MHz in 25KHz steps |
| 2. Output power | 33dBm ± 1.5 dB |
| 3. Channel bandwidth | 25KHz |
| 4. Modulation modes | 25KHz GMSK / AFSK |
| 5. Bit rate | 9600 b/s GMSK & 1200 b/s FSK |
| 6. RX sensitivity | <-107dBm at 20% packet error rate |
| PHYSICAL | |
| 1. Dimension | 207mm (length) x 155.8mm (Width) x 50mm (Height) |
| 2. Weight | 0.8kg |
| POWER | |
| 1. Input | 10 ~ 35 VDC |
| 2. Power consumption | 0.35A nominal , 2A peak |
| ENVIRONMENT | |
| 1. Temperature | Display unit: -25 degrees Celsius to +55 degrees Celsius Antenna unit: -25 degrees Celsius to +70 degrees Celsius |
| Electrical Interface | RS232 38.4kbaud bi-directional |
