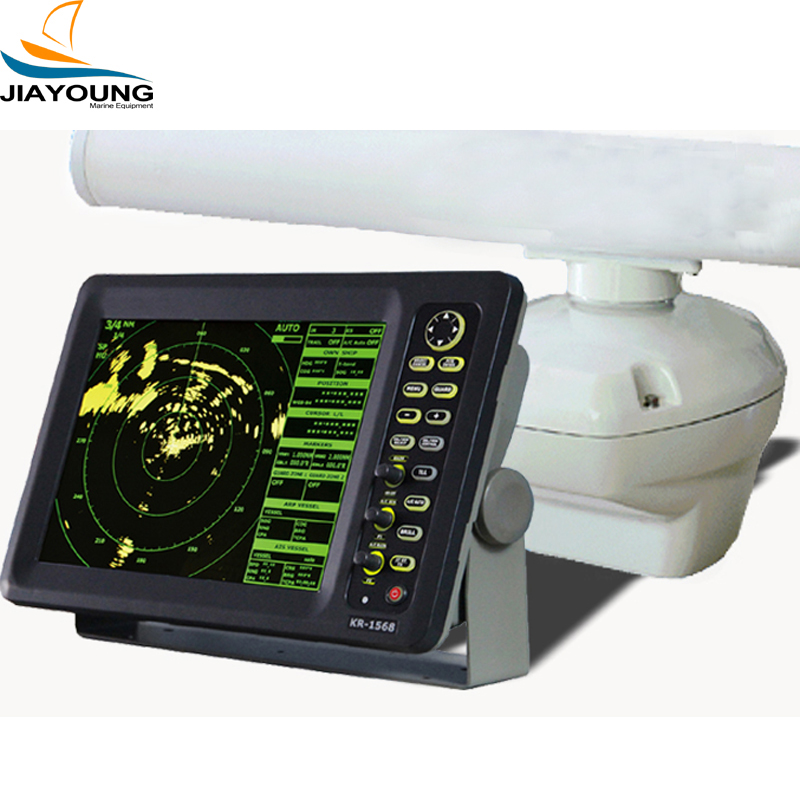

12 Inches 64NM Color LCD Marine Radar
Short Description:
Customizable Data Field, more flexible data display. System Software can be upgraded via USB. AIS display function. Multiple-Color selection for target and background. Rugged die-cast, waterproof housing. “Target Tracking” (TT) function, can track and trace up to 20 targets. User-programmable function keys. Automatic optimization of radar picture. Newly enhanced performance. Head-up, Course-up and North-up representation mode. Economy Mode, Guard Zone Alarm and Watch Mode. ANTENNA RADIATOR...
Product Detail
Product Tags
Customizable Data Field, more flexible data display.
System Software can be upgraded via USB.
AIS display function.
Multiple-Color selection for target and background.
Rugged die-cast, waterproof housing.
“Target Tracking” (TT) function, can track and trace up to 20 targets.
User-programmable function keys.
Automatic optimization of radar picture.
Newly enhanced performance.
Head-up, Course-up and North-up representation mode.
Economy Mode, Guard Zone Alarm and Watch Mode.
| ANTENNA RADIATOR | |
| Type | KR-1268: 120cm hybrid array |
| Length and Rotate speed | KR-1268: Open Array 120cm (KRA-2004) 24RPM |
| Wind load | Relative wind 100 knots |
| Beam width | KRA-2004: Hor: 1.9 Vert: 22 |
| RF TRANSCEIVER | |
| Frequency | 9410 +/-30MHz (X-band) |
| Pulse length PRR | 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm)
0.3µ s/1200 Hz(1.5*, 2, 3 nm) 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48, 64nm) * Pulse length & PRR for 1.5 and 3nm ranges can be select in menu |
| Peak Output Power | 6KW nominal |
| Mixer and Local Oscillator | Microwave Inter grated Circuit |
| IF | 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s) |
| Noise Figure | 10dB nominal |
| ENVIRONMENT | Temperature: Display unit: -15 to +55 C (Display Unit) Antenna unit: -25 to +70 C (Antenna Unit) |
| POWER SUPPLY | 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode) |
| DISPLAY UNIT | |
| Type | 12″ LED backlight, 32-bit TFT Color LCD Display 1024(V) x 768(H) dots |
| Display Modes | Head-up, Course-up*, North-up*, True Motion** * Heading input required ** Heading and speed inputs required |
| Range Scale (nm) | Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48, 64, 72 Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12 |
| Echo Trail | Interval: 15s, 30s, 1min, 3min, 6min, 15min, 30min or continuous |
| Interface(NMEA 0183 format) | any talker (menu selection) Input: $–APB,$–BWC,$–BWR,$–DBK,$–DBS,$–DBT,$–DPT, $–GGA,$–GLC,$–GLL,$–GTD,$–HDG,$–HDW,$–HDT, $–MDA,$–MTW,$–RMA,$–RMB,$–RMC,$–VTG, $–VHW, $–XTE Output: $–OSD,$–RSD,$–TLB,$–TLL,$–TTD,$–TTM |
| AIS Display | Acquisition : AIS vessels or ATON Tracking : Auto Display : Vessel Name, MMSI, Call sign, Range/Bearing, L/L Speed/Course, ROT, CPA/TCPA (AIS data input required) |
| Target Tracking Function | Acquisition : 20 manual/10 auto + 10 manual Tracking : Auto Display : Speed, Course, Range/Bearing and CPA/TCPA |
| EQUIPMENT LIST | |
| Display unit (KRD-2004): 1 unit
Open Array Antenna unit: KR-1268: KRA-2004 1 unit Antenna Cable (KRC-005-10/15/20): 10/15/20/30m (Specify when ordering) Power Cable (KRP-002-0): 3m Standard Spare Parts and installation materials: 1 set |
|
