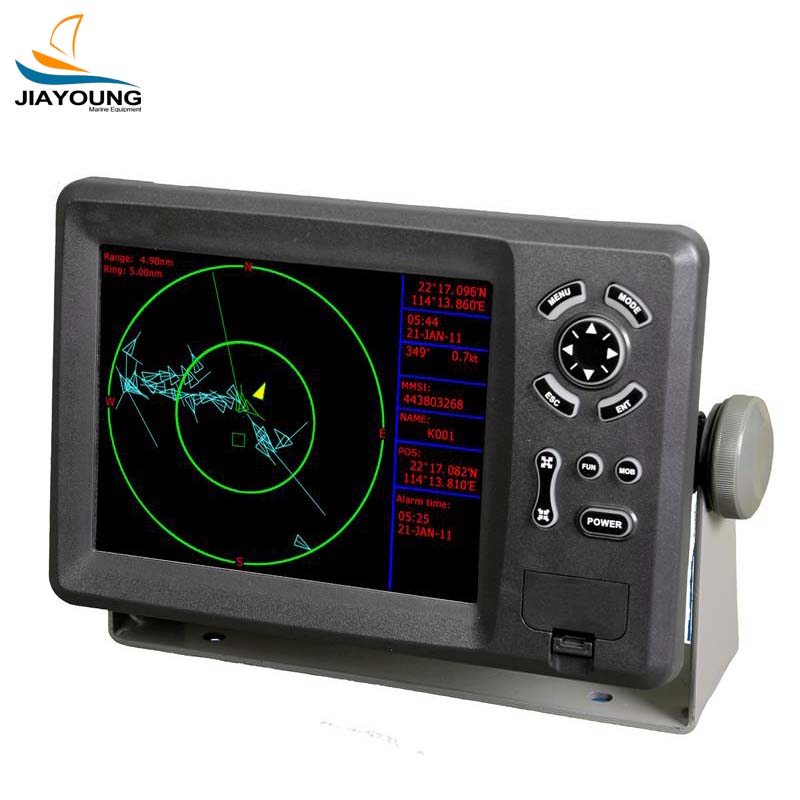

12.1 Inches Marine GPS AIS Chart Plotter
Short Description:
Built-in Automatic Identification System (AIS) Class B Transponder High resolution TFT day-view LCD display SD-cards slot for C-Map MAX and user data C-Map MAX and K-Chart Selectable Tide table and Celestial display Versatile display mode include Plotter Screen Nav.Data Satellite Information AIS Display Compass Screen GOTO track navigation Map orientation select Proximity waypoints alarms Perspective View Palette Normal Daylight – exposed to sunlight Night – in dark environment NOAA- paper ch...
Product Detail
Product Tags
Built-in Automatic Identification System (AIS) Class B Transponder
High resolution TFT day-view LCD display
SD-cards slot for C-Map MAX and user data
C-Map MAX and K-Chart Selectable
Tide table and Celestial display
Versatile display mode include
Plotter Screen
Nav.Data
Satellite Information
AIS Display
Compass Screen
GOTO track navigation
Map orientation select
Proximity waypoints alarms
Perspective View
Palette
Normal
Daylight – exposed to sunlight
Night – in dark environment
NOAA- paper chart color
Wind speed and direction display by optional sensor input
AIS guard zone with CPA and TCPA alarm
| PLOTTER CHARACTERISTICS | |
| Waypoints/icons | 15,000 waypoints with name, symbol, 10 proximity waypoint |
| Routes | waypoint up to 200 points each, plus MOB and Track Navigation or Goto Track modes |
| Tracks | 30,000 point automatic track log; 15 saved track (up to 2000 track points each) let you retrace your path in both directions |
| Alarms | XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time, AIS alarm. |
| Pallete | Normal,Daylight exposed to sunlight,Night in dark environment,NOAA paperchart colors |
| Tides | Tide data |
| Projection | Mercator projection |
| Position format | Latitude/Longitude |
| Basemap | Built-in K-Chart |
| External Map | SD Cards slot for C-Map MAX |
| User data storage | Internal backup of user settings, or external SD-card |
| Plot Interval | 1s to 99h or 0.01 nm to 9.99nm |
| Plotting scales | 0.01nm to 1,000nm |
| Nav Data | Inputs: $–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV, $–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC, $–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW Outputs: $–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL, $–RMB,$–RMC,$–VTG, $–XTE, $–ZDA Outputs for autopilot: $–AAM, $–APB, $–BOD,$–VTG |
| Perspective View | On/off |
| POWER SUPPLY | 10.5 to 35VDC, current drain <500mA at 12V |
| PHYSICAL | |
| Size | 363.8mm(H)X267.9mm(W)X106mm(D) |
| Weight | 3.95kg |
| Display | 12.1-inches Color TFT day-view LCD 800 X 600 pixels |
| Waterproofing | Display unit: IPX5,Antenna unit: IPX6 |
| Temperature range | Display unit: -15℃ to +55℃,Antenna unit: -25℃ to +70℃ |
| AIS CHARACTERISTICS | |
| Transmitter x 1 | (For KP-1299A ONLY) |
| Receiver x 2 | (one time shared between AIS/DSC) |
| Frequency | 156.025 to 162.025 MHz in 25KHz steps |
| Output power | 2 watts typical(For KP-6299A only) |
| Channel bandwidth | 25KHz |
| Channel step | 25KHz |
| Modulation modes | 5KHz GMSK (AIS,TX AND RX) 25KHz AFSK (DSC,RX only) |
| Bit rate | 9600 b/s +- 50 ppm (GMSK),1200 b/s +- 30 ppm (FSK) |
| RX sensitivity | Sensitivity – 107dBm 25Khz,Message error rate less than: 2%,Co-channel 10dB,IMD 62dB,Blocking 84dB |
| EQUIPMENT LIST | |
| Standard | Display unit,Antenna unit with 10m cable,Operator manual,Installation materials and standard spare parts |
| GPS RECEIVER CHARACTERISTICS | |
| Receiver | 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position |
| Acquisition times | Cold start: 27 seconds average,Warm start: 27 seconds average,Hot start: 1 seconds average |
| Update rate | 1/second,continuous |
| Accuracy | Position: 2.5 meters(95%) without S/A,Velocity: 0.1 Meter/sec without S/A,Time: ±100ns synchronized to GPS time |
| Dynamics | Altitude: 50,000m Max,Velocity: 500 m/s,Acceleration: 4g Max |
| Datum | WGS 84 & Others |
| Interfaces | NMEA 0183 input and output,RS232 and RS422 output |
| Antenna | KA-07 |
